| Brand Name: | Foshan City Chengtong Machinery Co., Ltd. |
| Price: | custom-made |
| Payment Terms: | L/C,D/P,T/T |
| Supply Ability: | Stable, punctual and sufficient supply; |
| Parameter items | Protective function | remarks |
| Typical values | 400×500 / 600×500 / 800×600 | According to the crushing cavity width x length. |
| Drive mode | Direct connection of double motors and double reducers | |
| Motor power | 11×2 kW / 15×2 kW / 22×2 kW | Small and medium-sized sludge machines come standard with double drives. |
| Operating speed | 20–60 r/min | Low speed anti-winding, non-stick material |
| processing power | 3–15 t/h (sludge) | According to the water content of 70-85% |
| Feeding size | ≤150 mm | Adapted plate frame/belt dewatered sludge cake |
| Discharge particle size | 5–15 mm | Evenly break up, without big agglomeration. |
| Spindle material | Forging/Tempering of No.45 Steel | The load-bearing shaft is thick and bending-resistant. |

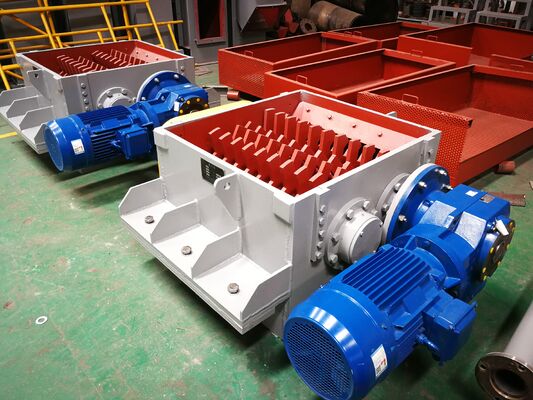

| Broken tooth material | High manganese steel and alloy wear-resistant teeth | Wolf tooth/comb tooth structure, the picture is red tooth plate. |
| Equipment material | Q235 carbon steel, 304 stainless steel can be customized. | Anti-corrosion and sludge corrosion resistance |
| Equipment material | Horizontal, upper inlet and lower outlet/side outlet | Can be connected with sludge bin, belt conveyor and delivery pump. |
| Protective function | Overload protection, automatic reversal of blocking | Standard electrical interlock protection. |
The same series of expansion parameters (large/small)
Minicomputer (model 300): power 5.5×2 kW, throughput 1–5 t/h.
Medium-sized machine (Model 800): power 30×2 kW, throughput 15–30 t/h.
Mainframe (model 1000): power 37×2 kW, throughput 30–60 t/h.
