| Brand Name: | Chengtong |
| Model Number: | B630 |
| MOQ: | 1 |
| Price: | custom-made |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | Stable, punctual and sufficient supply; |

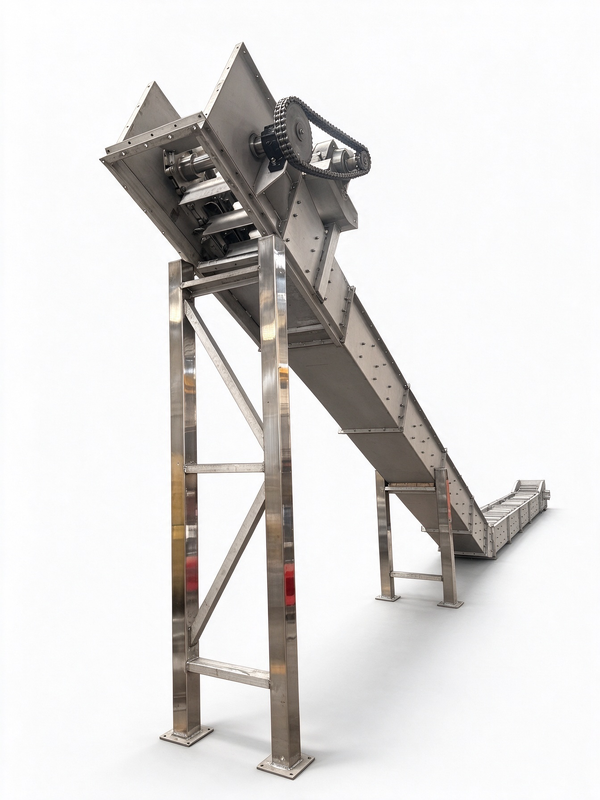

This frequency controlled double-strand stainless steel scraper conveyor is a fully enclosed bulk conveying unit equipped with variable frequency speed regulation system. It adopts double-strand traction chain to drive scraper plates, and all material contact parts are made of stainless steel. By adjusting chain speed through frequency converter, it realizes stable and precise quantitative feeding of powder and granular materials. It is widely used in fine chemical, food processing and environmental protection industries, especially suitable for corrosive raw materials that require accurate feeding dosage.
It uses double-strand synchronous chain drive to balance load and ensure stable scraper operation. Stainless steel structure provides reliable corrosion resistance for acid and alkaline materials. Frequency stepless speed regulation supports flexible adjustment of feeding capacity. Fully enclosed trough prevents dust leakage and material contamination. Overload and chain breakage monitoring protection is integrated. Inspection hatches are reserved for maintenance and blockage clearance.
| Item | Specification |
|---|---|
| Equipment Name | Double-strand Stainless Steel Scraper Conveyor |
| Control Mode | Frequency variable speed control |
| Transmission | Double-strand synchronous chain traction |
| Contact Material | Stainless steel (304 / 316L optional) |
| Running Mode | Continuous quantitative feeding |
| Applicable Materials | Corrosive chemical powder, food raw materials, fine granular bulk |
Double-strand design distributes load evenly, reducing chain deflection and deformation. Frequency control achieves accurate quantitative feeding to match downstream process demand. Stainless steel body avoids rust and material pollution. Sealed trough realizes dust-free, environment-friendly conveying. Built-in safety protection effectively lowers breakdown risk during long operation.
