Product Overview

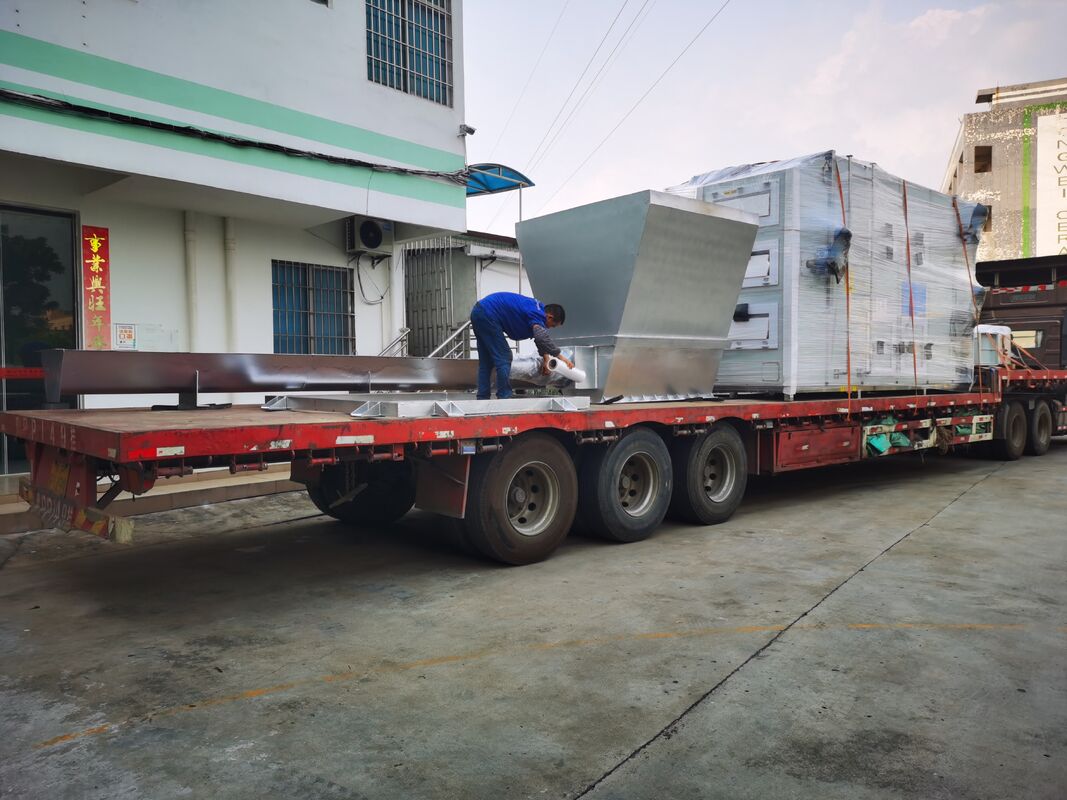

Sludge Dryer is an industrial thermal drying equipment for sludge reduction and stabilization. Heat transfers to wet sludge inside a fully enclosed drying chamber to evaporate moisture, lowering sludge moisture content significantly. It is designed for dewatered sludge treatment of municipal sewage, industrial wastewater and hazardous waste sludge.

Featuring high sludge reduction rate, the unit adopts fully sealed housing to contain odour and dust, reducing secondary pollution. It is widely used for continuous drying of various wet sludge after plate frame filter press, belt filter press and centrifugal dewatering.

Main types include Heat Pump Sludge Dryer (low temperature), Direct Heating Sludge Dryer and Indirect Heating Sludge Dryer. Carbon steel or stainless steel material options are available for ordinary, corrosive and sanitary working conditions. Anti-stick coating on drying plates or paddles is optional for high-viscosity sludge applications.

Main Structure & Key Features

Drying rotor / paddle assembly: Paddle rotor is the core working component. Hollow paddles or drying discs carry heating medium inside and transfer heat to sludge indirectly. Different paddle structures are selectable for different sludge viscosity and flow characteristics. Paddles are firmly welded on the main shaft.

Heating assembly: The main heat transfer medium can be hot water, steam or thermal oil. For low-temperature models, heat pump system recycles waste heat to cut energy consumption. Different heating layouts are available for low, medium and high temperature drying requirements.

Drying chamber assembly: Sealed metal casing consisting of feeding section, main drying section and discharge section. Fully-enclosed design prevents odour leakage and dust escape. Inspection hatches and cleaning ports are reserved for routine maintenance and internal flushing. Stainless steel chamber meets anti-corrosion requirements for chemical sludge.

Drive & speed regulation unit: Motor-reducer assembly provides adjustable rotating speed. Main shaft drives the paddle rotor to stir and turn over sludge continuously. Frequency converter is equipped to adjust residence time according to target outlet moisture. Anti-blocking structure avoids sludge bonding and accumulation on heating surfaces.

Inlet & outlet: Standard feeding port and discharge port can be matched with upstream dewatering equipment and downstream conveying system. Customised inlet/outlet height and connection flange can be supplied to match your process layout. Exhaust gas outlet connects to deodorization and waste gas treatment system.

Typical Application

Commonly used in municipal wastewater treatment plants, chemical industry, printing & dyeing, electroplating, leather, food processing and hazardous waste disposal industries for sludge drying. Suitable for conditions as below: Sludge reduction requirement before landfill, incineration or resource utilization; Processes requiring closed treatment and strict odour control; Limited installation space demanding compact equipment layout; Production flows transferring dewatered sludge into dryer and delivering dried sludge to silos or subsequent treatment units; Corrosive or sticky sludge, where stainless steel contact parts and anti-stick treatment are preferred.

Selection Notes

Define sludge properties: inlet moisture, outlet target moisture, viscosity, corrosiveness and oil content to decide heating type, contact material and anti-stick treatment. Confirm required hourly processing capacity, sludge type and working temperature. Processing capacity, moisture reduction range and heating medium directly determine model selection and installed power. Not recommended for sludge containing large hard impurities which easily damage paddles and heating surfaces and cause wear failure. Specify special requirements such as explosion-proof, anti-corrosion, waste heat recovery or CE certification. Check site layout, reserved maintenance space for shaft ends and piping arrangement for heating medium and exhaust gas.

Conclusion

With excellent odour sealing performance, stable heat transfer and remarkable sludge reduction effect, Sludge Dryer is the preferred solution for wet sludge volume reduction. Reliable continuous drying operation can be achieved when properly matched with sludge characteristics and site working conditions.
