| Brand Name: | Chengtong |
| MOQ: | 1 |
| Price: | custom-made |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | Stable, punctual and sufficient supply; |

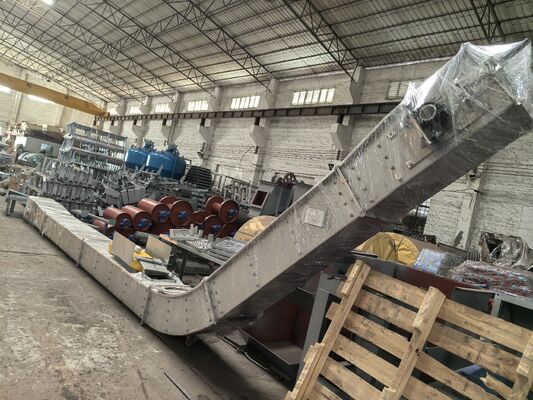

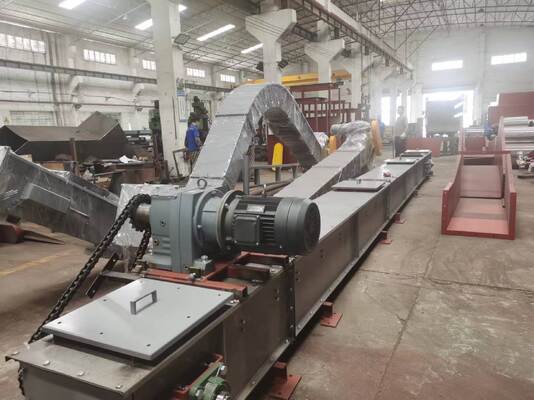

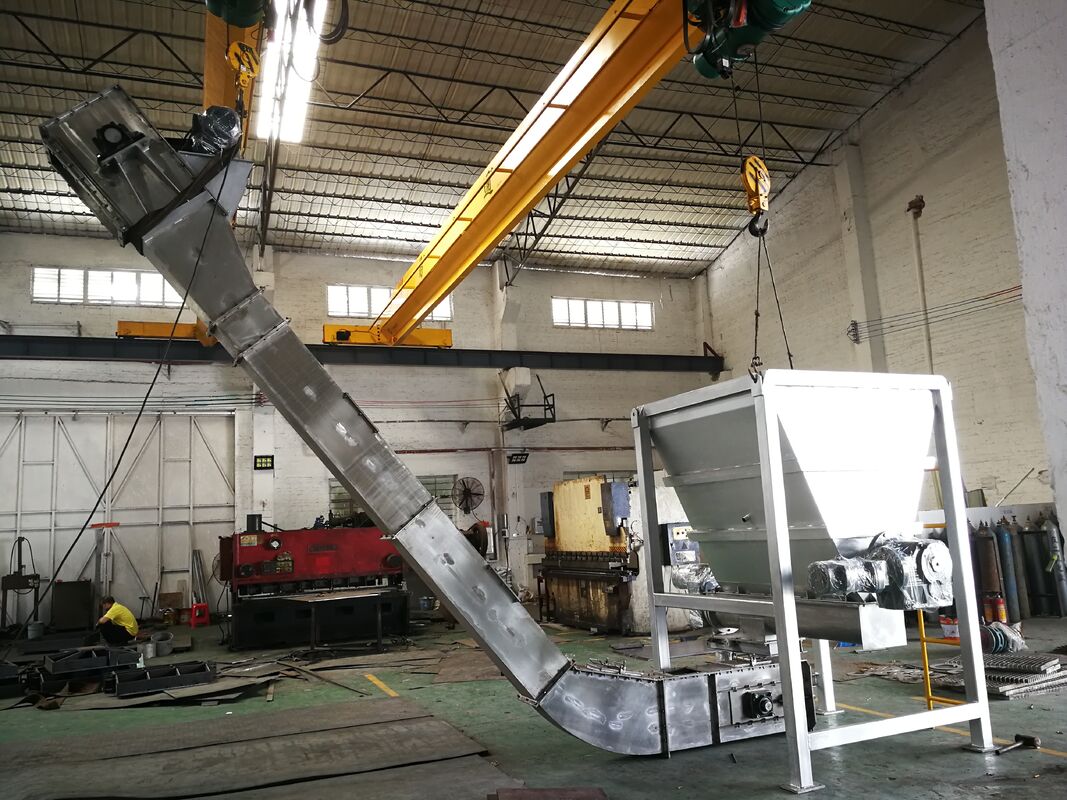

This anti-clogging heavy load scraper conveyor is a fully enclosed chain-driven conveying equipment tailored for cement and chemical industry bulk material transfer. It adopts optimized trough and scraper structure to transport powdery, granular and small lump materials continuously. It solves frequent blockage problems caused by fine powder, moist and easy-agglomerating materials in cement plants and chemical workshops, and can be used for horizontal or slightly inclined conveying between silos, kilns, mixers and packaging stations.
It features heavy-duty chain and scraper assembly for long-term high-load operation. Streamlined internal trough design reduces material dead zones that cause clogging. Fully enclosed housing prevents dust leakage and material contamination. Variable frequency drive is optional to adjust conveying speed according to material characteristics. Wear-resistant liner is laid inside the trough to extend service life. Overload jam protection is equipped to stop the machine timely when abnormal blockage occurs.
| Item | Specification |
|---|---|
| Equipment Type | Heavy load scraper conveyor |
| Applicable Industries | Cement industry, chemical industry |
| Transmission Form | Chain scraper drive |
| Conveying Layout | Horizontal / slight inclination |
| Core Feature | Anti-clogging design |
| Conveyable Materials | Cement raw meal, clinker powder, chemical powder, granular additives |
Optimized internal structure eliminates material accumulation dead corners and reduces clogging downtime. Fully enclosed structure realizes dust-free conveying and improves workshop environment. Heavy-duty chain system supports stable operation under continuous heavy load. Replaceable wear liner lowers the cost of trough maintenance. Overload protection effectively prevents chain and scraper damage from jamming.
