| Brand Name: | Chengtong |
| MOQ: | 1 |
| Price: | custom-made |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | Stable, punctual and sufficient supply; |

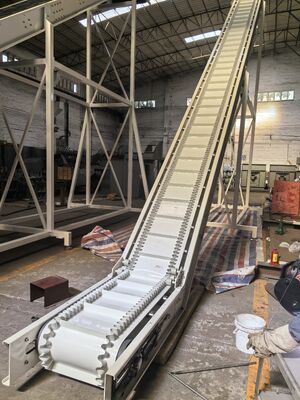

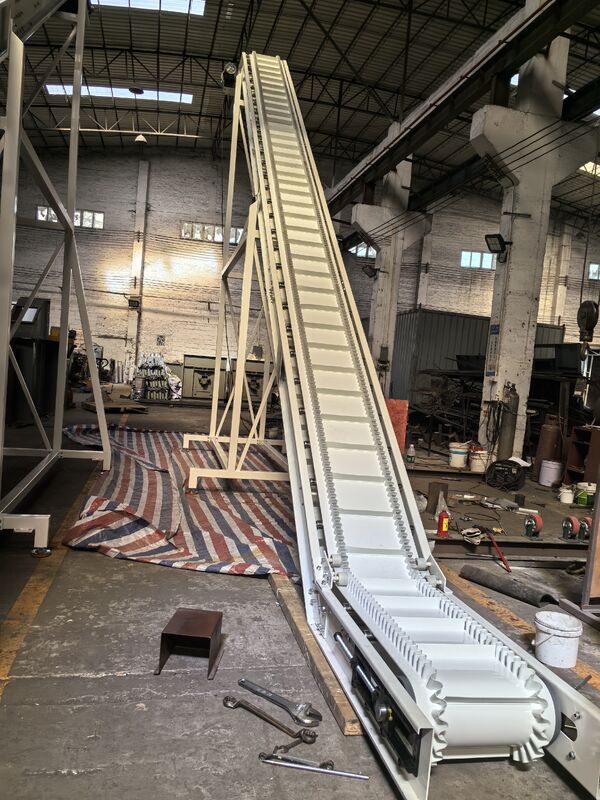

This wear resistant large angle belt conveyor is a DJ type corrugated sidewall steep lifting conveyor designed for continuous bulk material elevation. Equipped with high abrasion-resistant cleated rubber belt, it can convey granular, powdery and small lump materials at a steep inclination without sliding or spilling. It is widely used in mining, building materials, chemical industry and sludge treatment lines, especially suitable for long-time transportation of abrasive raw materials that easily wear ordinary conveyor belts.
It adopts integrated vulcanized corrugated sidewall and transverse cleat structure. The heavy wear-resistant rubber belt resists friction from gritty bulk materials. It supports adjustable large conveying angle for space-saving installation. Anti-deviation roller sets are fitted on both sides of the belt. Frequency speed regulation is optional to control material throughput. Overload protection and emergency stop switches are equipped for operation safety.
| Item | Specification |
|---|---|
| Model Type | Large angle corrugated sidewall belt conveyor |
| Core Feature | Wear resistant belt for abrasive bulk materials |
| Conveying Angle | 0° ~ 90° optional |
| Belt Structure | Base belt + corrugated sidewall + transverse cleats |
| Drive System | Motor + helical gear reducer |
| Applicable Materials | Sand, ore particles, cement raw meal, mineral bulk materials |
High wear-resistant belt cover greatly extends service life when transporting gritty abrasive materials. Corrugated sidewall and cleats prevent material backflow during steep lifting. Large angle design reduces workshop footprint and intermediate transfer equipment. Anti-deviation rollers lower belt deviation and tearing risk. Adjustable speed realizes stable and controllable feeding capacity.
