Large Angle Belt Conveyor

Product Overview Corrugated sidewall belt conveyor is a fixed continuous bulk material conveying equipment. It transports materials along the conveying frame by the circulating movement of corrugated sidewall belt with transverse cleats. It is specially designed for steep-angle conveying to prevent materials from sliding down.

Featuring excellent anti-slip performance, the unit adopts corrugated sidewall rubber belt with cleats to realize large inclination conveying. It is widely adopted for continuous conveying of granular and block bulk solids.

Main types include stationary corrugated sidewall belt conveyor and mobile corrugated sidewall belt conveyor. Carbon steel frame is standard; stainless steel frame and wear-resistant corrugated sidewall belt options are available for ordinary, damp and mildly corrosive working conditions.

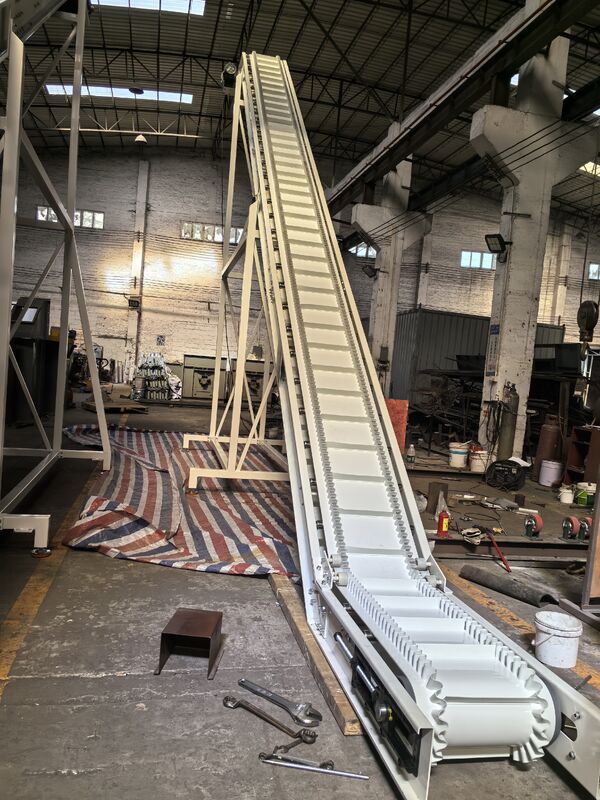

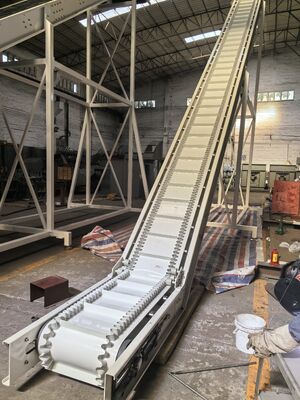

Main Structure & Key Features Conveyor belt assembly: The corrugated sidewall belt with cleats is the core working component to carry and lift materials. Wear-resistant, oil-resistant and food-grade belts are selectable for different materials.

Frame assembly: Heavy-duty steel frame for stable installation. Fixed base or travelling wheel structure is optional according to site layout.

Drive unit: Motor-reducer assembly supplies power. It drives the belt to run circularly for continuous material conveying.

Tensioning device: Screw tensioner adjusts belt tension effectively to prevent belt slipping and deviation.

Adjustable conveying capacity: Conveying rate can be adjusted by changing belt speed to match downstream processing equipment.

Low material breakage: Stable belt movement avoids excessive crushing of materials, suitable for most lump and granular materials.

Typical Application Commonly used in mining, quarry, grain, cement, metallurgy, construction, chemical and environmental-protection industries for steep-angle bulk material conveying. Suitable for conditions as below: Steep inclined conveying between silos, hoppers and processing equipment; Conveying granular and block materials such as grain, ore, gravel and aggregate; Supporting conveying for crushing, screening and lifting systems; Indoor and outdoor continuous conveying operations.

Selection Notes Define material properties: particle size, bulk density, abrasiveness and moisture to decide belt type and frame material. Confirm required conveying capacity, conveying height, inclination angle and installation method (fixed or mobile). The actual throughput will change with belt speed and inclination angle. Not recommended for ultra-sticky materials that may adhere to the belt surface and affect conveying efficiency. Clarify working environment (indoor or outdoor), confirm dust cover requirement. Check whether side guards, speed regulation function and anti-spill baffles are needed.

Conclusion With stable steep-angle conveying performance, compact structure and reliable operation, corrugated sidewall belt conveyor is an ideal solution for large inclination bulk material conveying. Stable conveying output can be achieved when properly matched with material characteristics and site conditions.
